Hydrogen and water-cooled turbo-generato
作者： 发布时间：2013-11-07 浏览次数：10749次
They are widely used in the large and medium size fossil-fired power plants. The hydrogen and water-cooled turbo generators manufactured by BSTG have two types:
1. Gap gas pick up inclined flow type with Double ring shaft seal oil system. Output from 200MW to 330MW.
2. Sub-slot inlet and all out vent type with Single ring shaft seal oil system. Technology introduced from ALSTHOM.

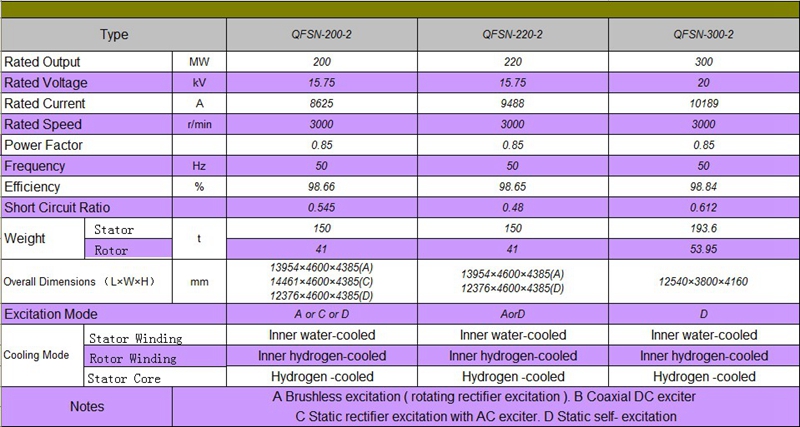

HYDROGEN AND WATER-COOLED TURBO-GENERATORS
200MW-300MW

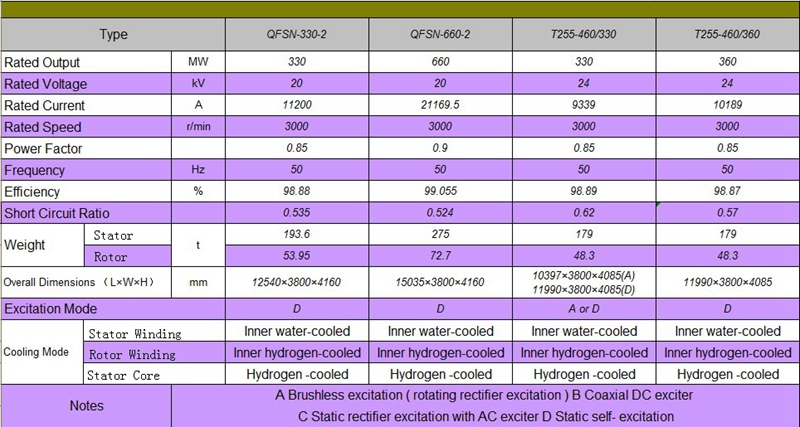

HYDROGEN-WATER-COOLED TURBO-GENERATORS OF QFSN&T-SERIES
330MW-660MW
