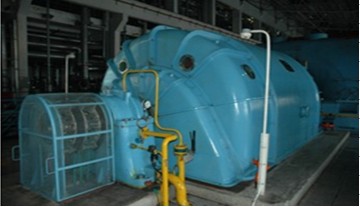

The turbo generator designed and manufactured by BSTG is of 3 phase, 2 pole type, synchronous with non-salient poles. The stator frame welded with boiler steel plates is light in weight but sturdy in construction. The insulation of both stator and rotor coils is of F class. The ventilation system can be either open or closed. Prior to delivery the whole generator is strictly tested and shall pass the electric and performance test according to IEC 60034-3 and GB/T 7064 standards. Our company possesses various types of excitation technology. Especially the brushless excitation is prominent in the domestic market. Besides,we can also supply turbo generators with co-axial DC excitor, static rectifier excitation with AC excitor or static self-excitation.

According to different cooling medium for stator coil, rotor coil and stator core, our company supplies 4 series of turbo generators：

Hydrogen and Water-cooled turbo generator

Dual inner water-cooled turbo generator

Inner air-cooled turbo generator

Air-cooled turbo generator
